TSi 150CC-E Compact-Crawler

Maximum power. Minimum footprint.

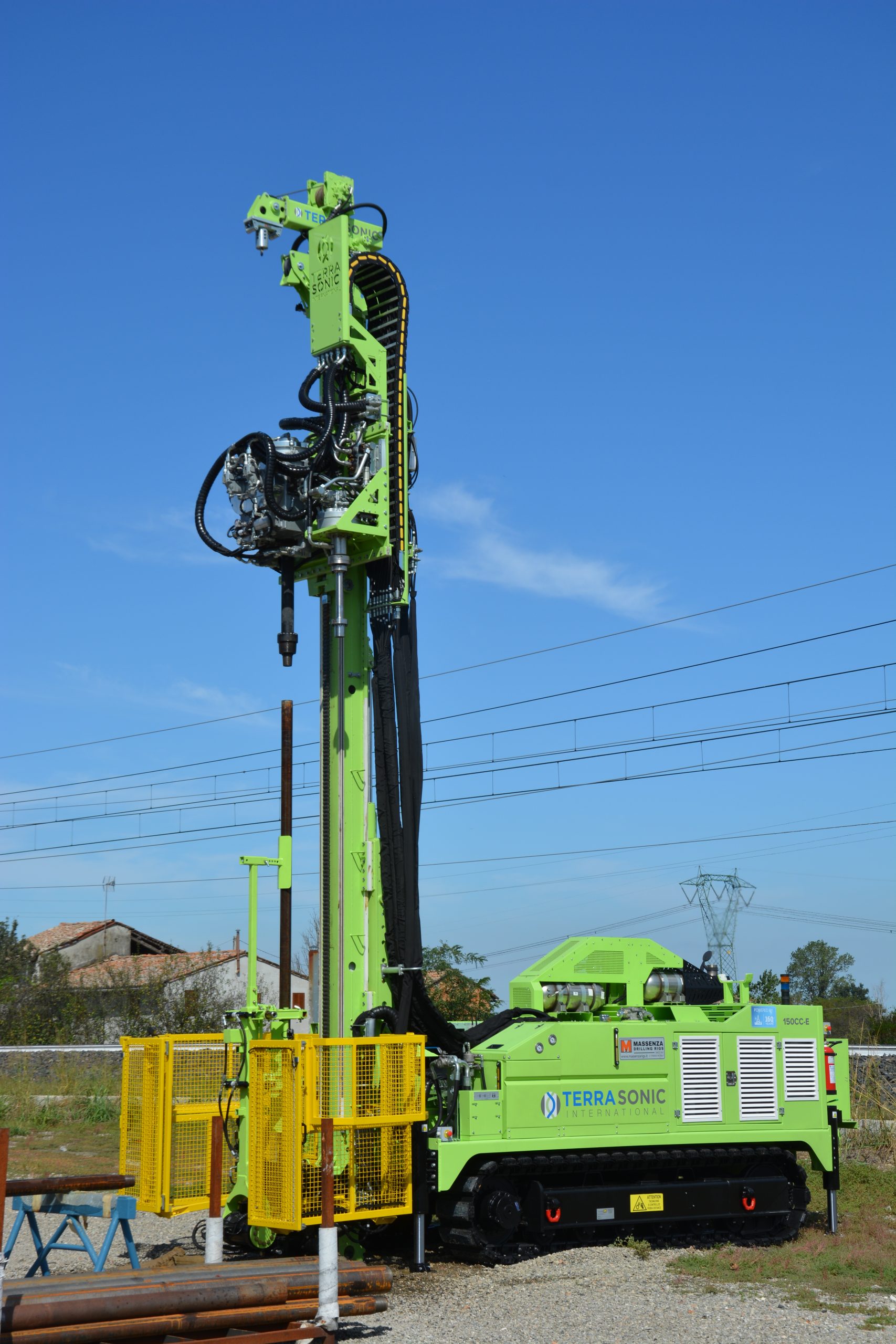

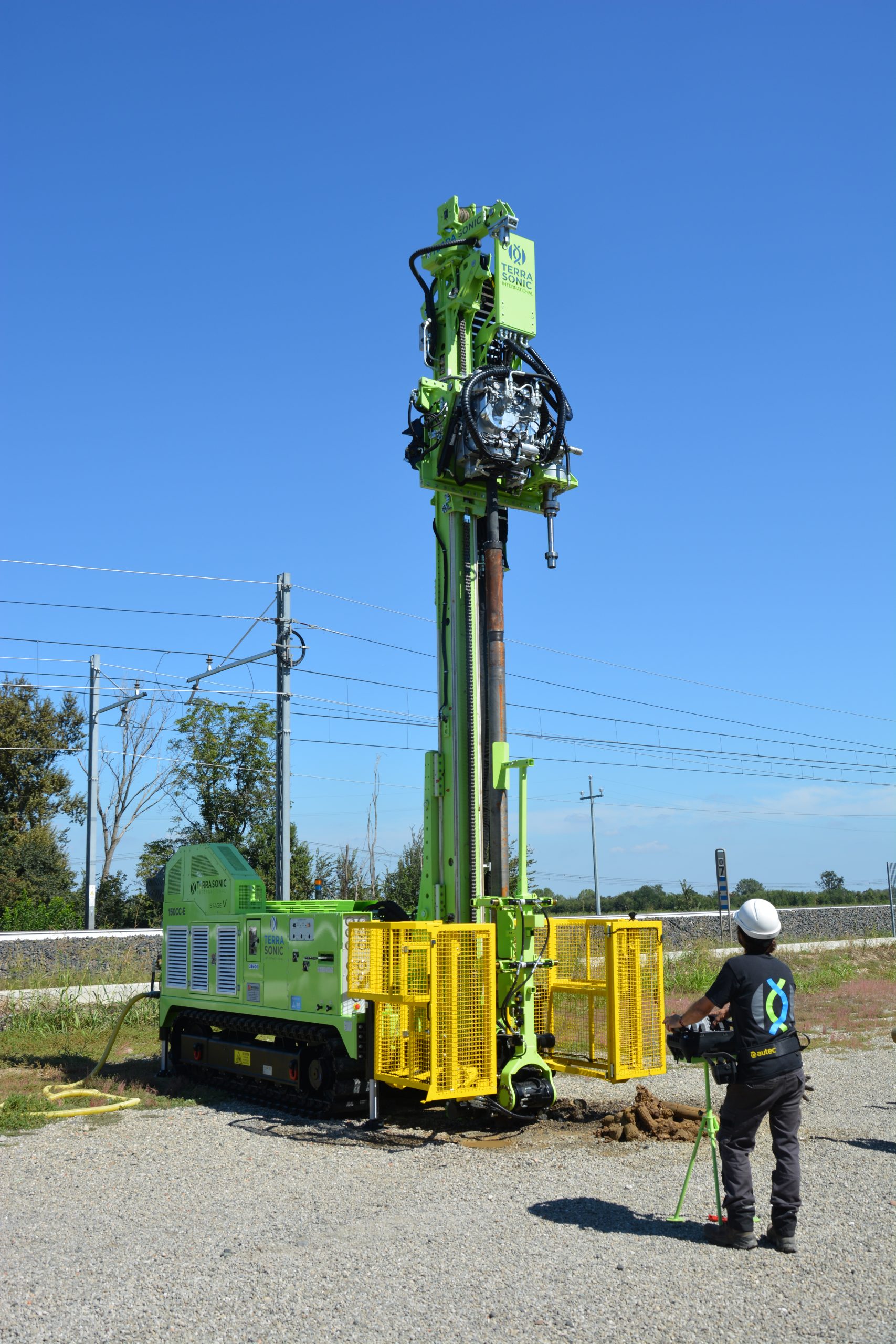

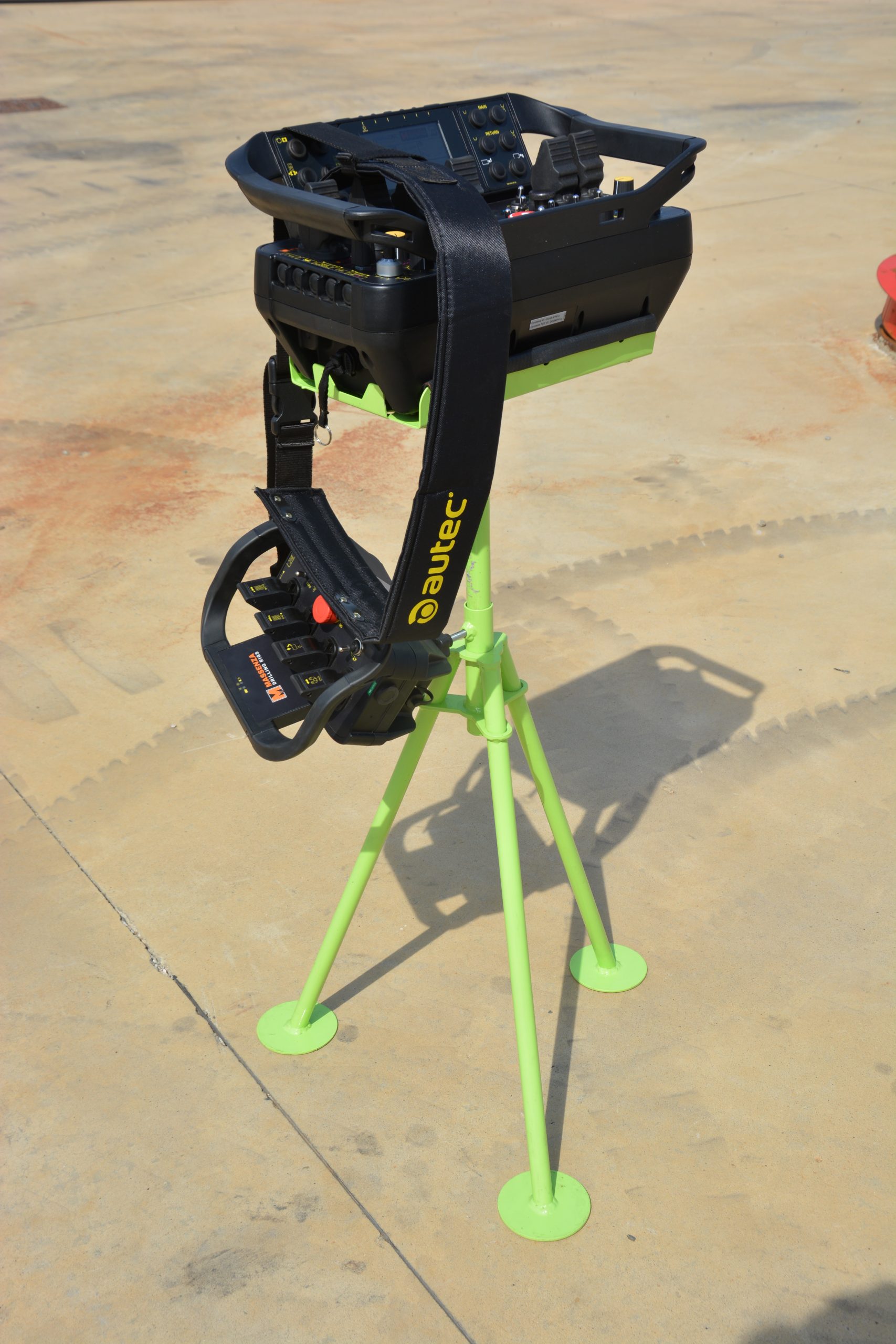

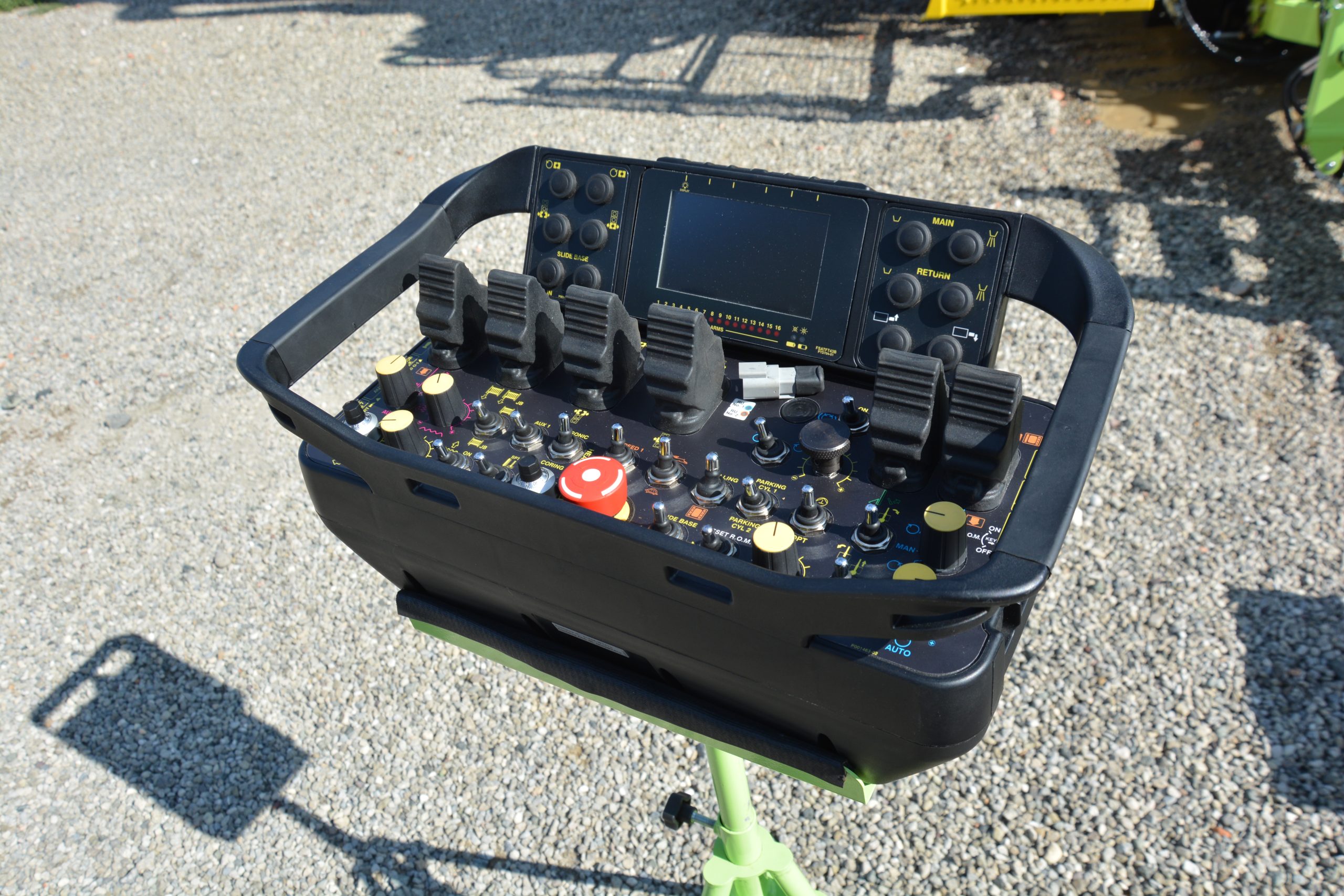

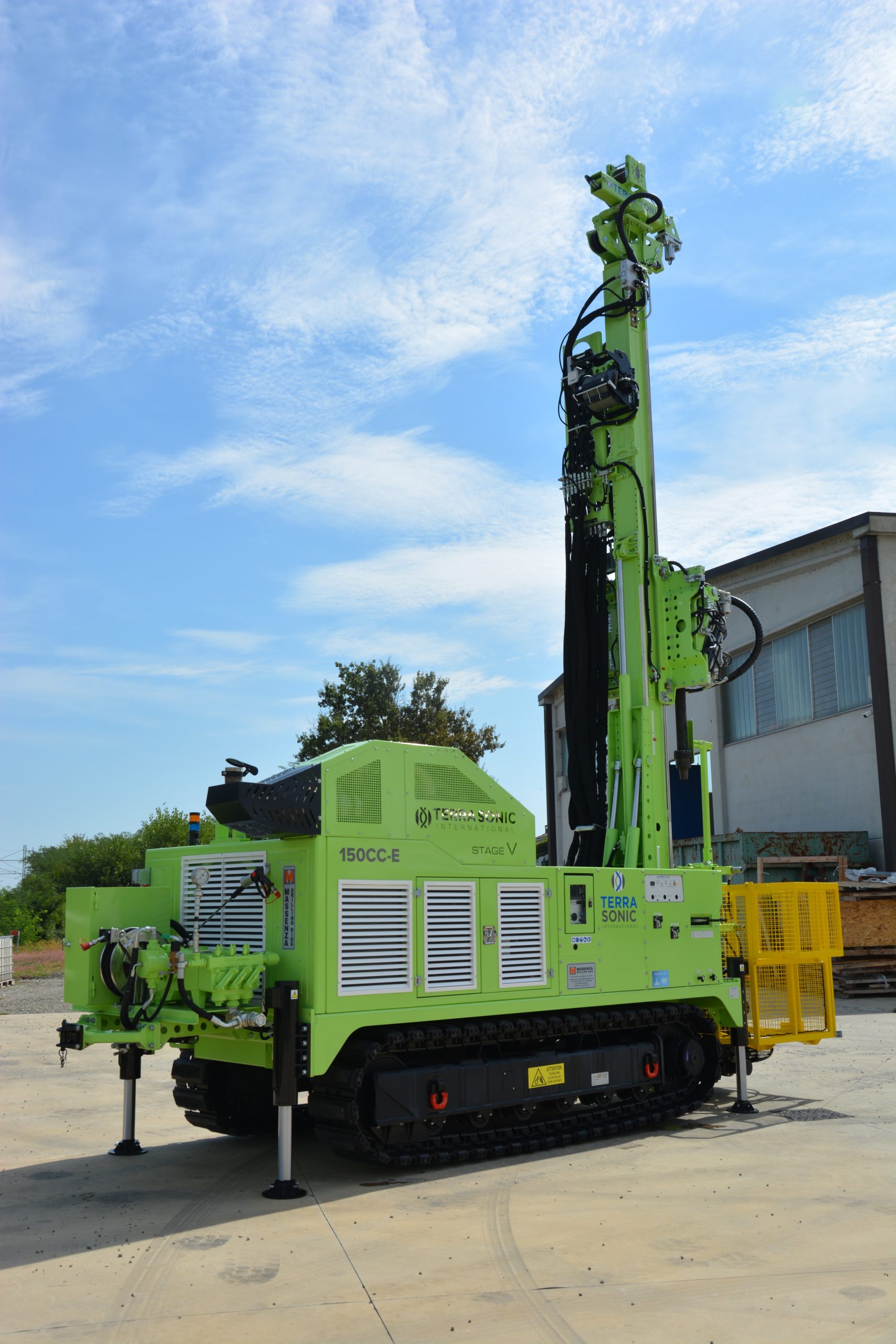

The TSi 150CC Sonic Drill Rig is the most powerful sonic rig on a small platform in the world. It brings full Terra Sonic power and innovation to a compact footprint for remarkable flexibility and versatility. The track-mounted 150CC easily reaches limited-access areas and tough terrain. Remote control tracking makes the 150CC ideal for use in tighter spaces.

---

Key Applications

• Environmental assessment and remediation
• Mineral and aggregates exploration
• Dam and levee investigations and rehabilitation
• Water resource profiling
• Construction dewatering projects
• Landfill investigations and expansions
• Geo-Construction projects
• Geotechnical studies
• Geothermal loop installation

---

TSi 150CC Advantages

True Sonic Performance Exclusive TSi 150 Series Sonic Oscillator uses 150 HP to generate up to 50,000 lbs. of resonant sonic energy

Maximum Power 225 HP Tier IV Final diesel engine powers all driving, drilling and accessory functions

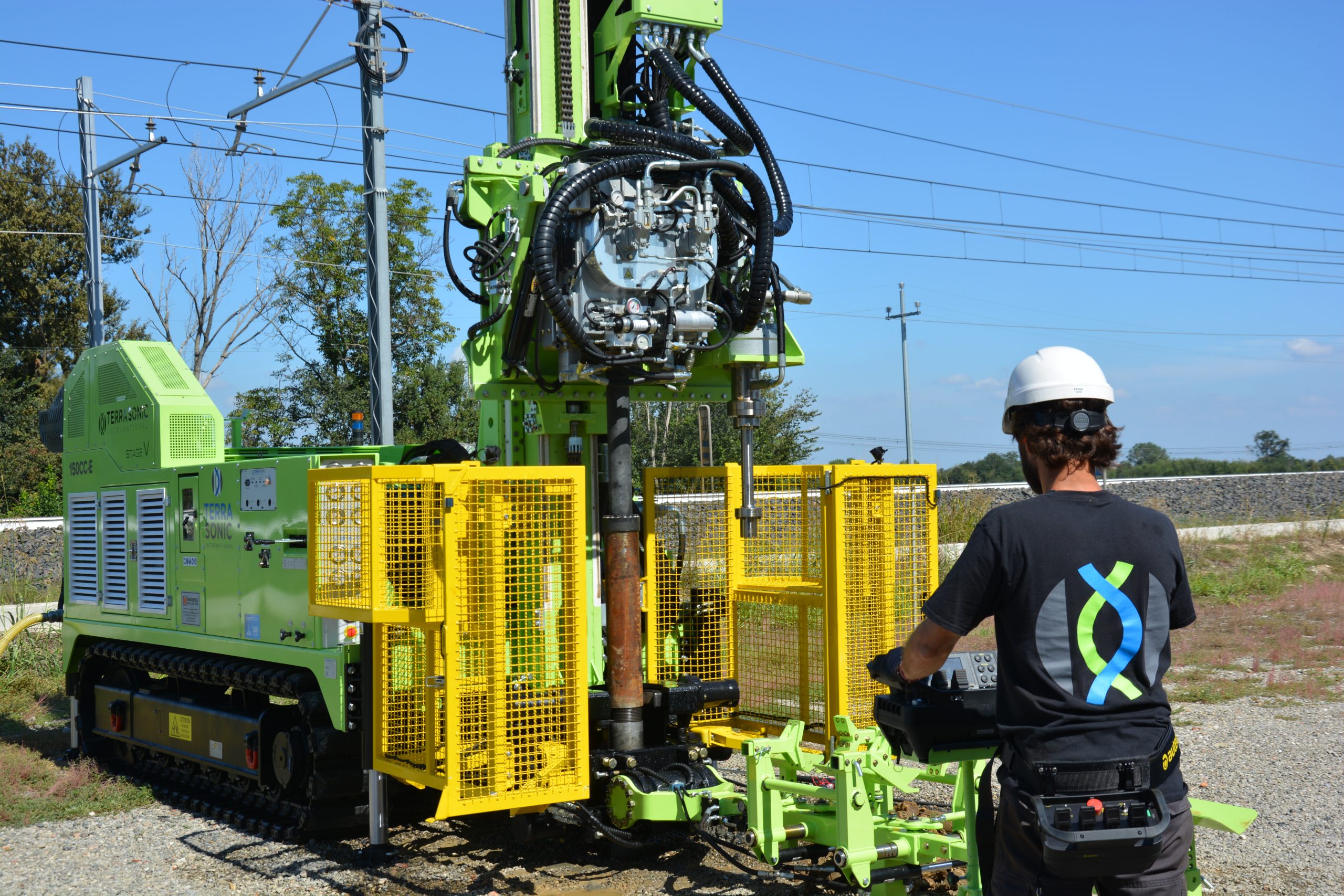

Increased Safety Fold-down work platform enhances driller operating safety and efficiency

Proven Sonic Capabilities Rated drilling depth of up to 1,000’ depending on lithology and casing design

Broad Drilling Range Uses drill steel from 3” to 12” in diameter for use in many applications

Ultimate Portability 7′ 3″ W x 21′ 4″ L x 7′ 9″ H size easily fits into a standard shipping container and can fit onto smaller drilling pads

Indoor Compatibility Optional short mast (14’ 6”) allows for drilling in indoor and outdoor low-clearance applications

Cost-saving and Space-saving Design The compact and lightweight size reduces fuel costs, means less wear and tear on transport vehicles and saves deck space on trailers

Environmental Versatility Wide track mount and low ground pressure facilitate work in extremely fragile environments

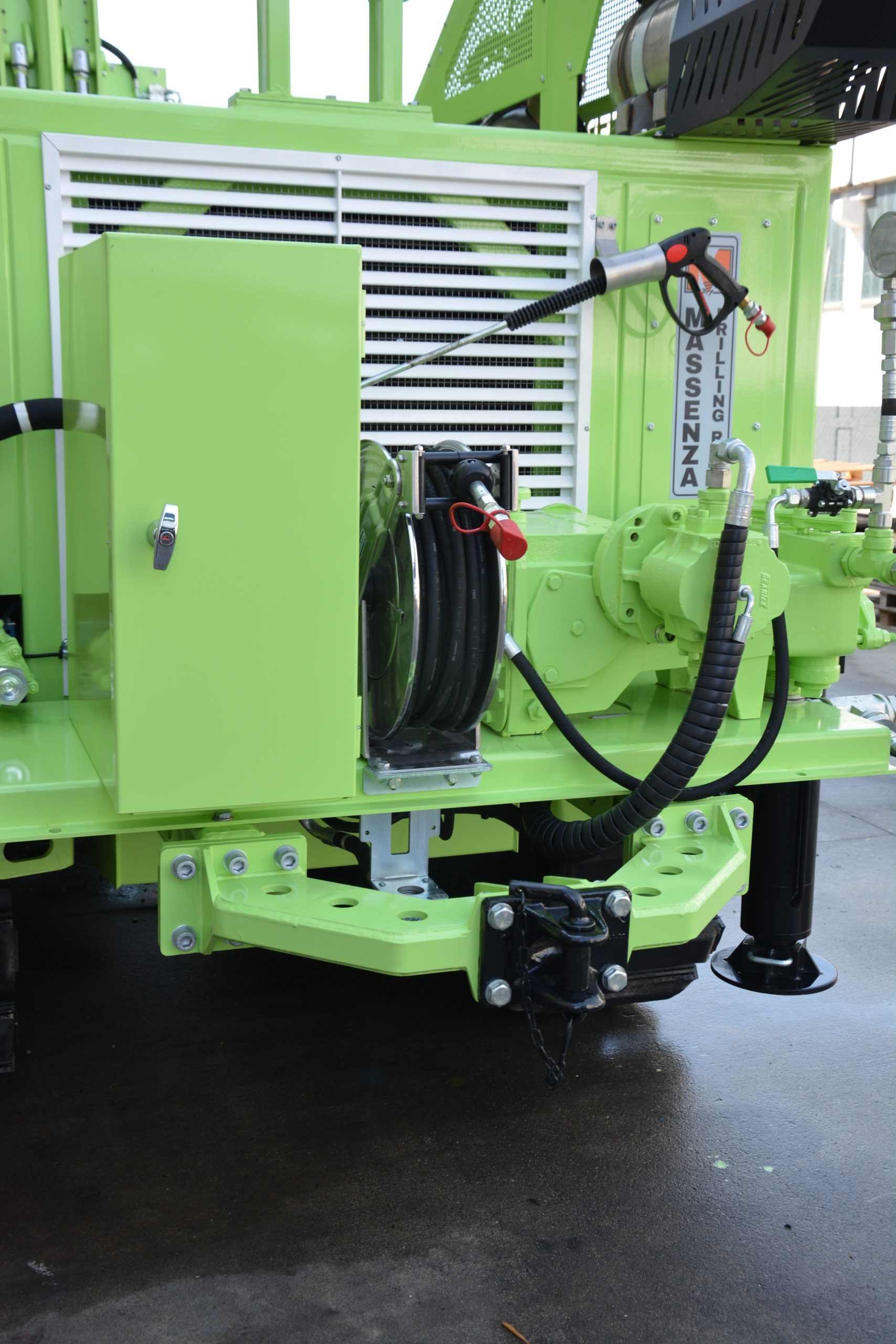

FMC Bean Pump A piston pump plumbed into the drilling system and water tank enables flushing of drill cuttings from borehole

---

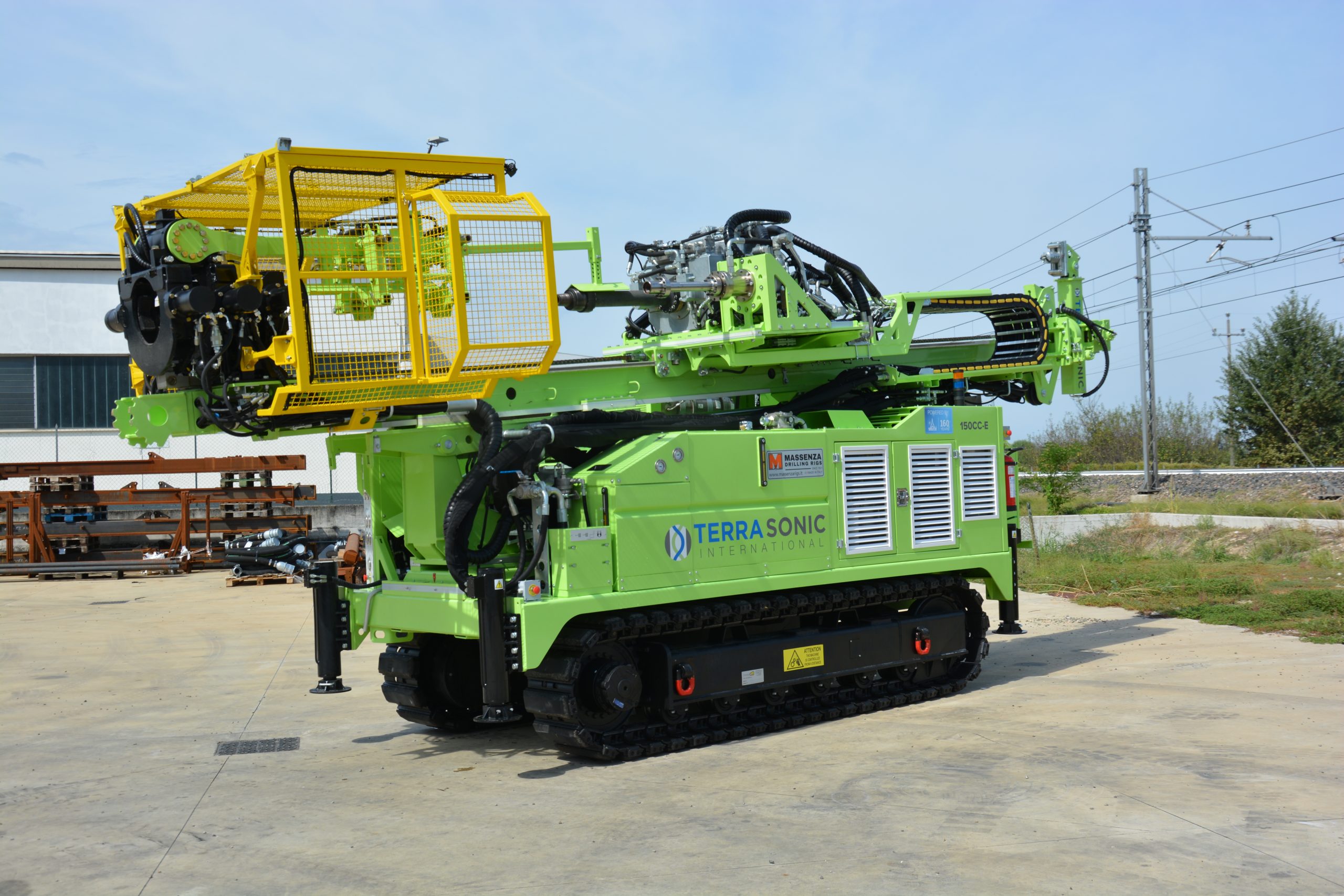

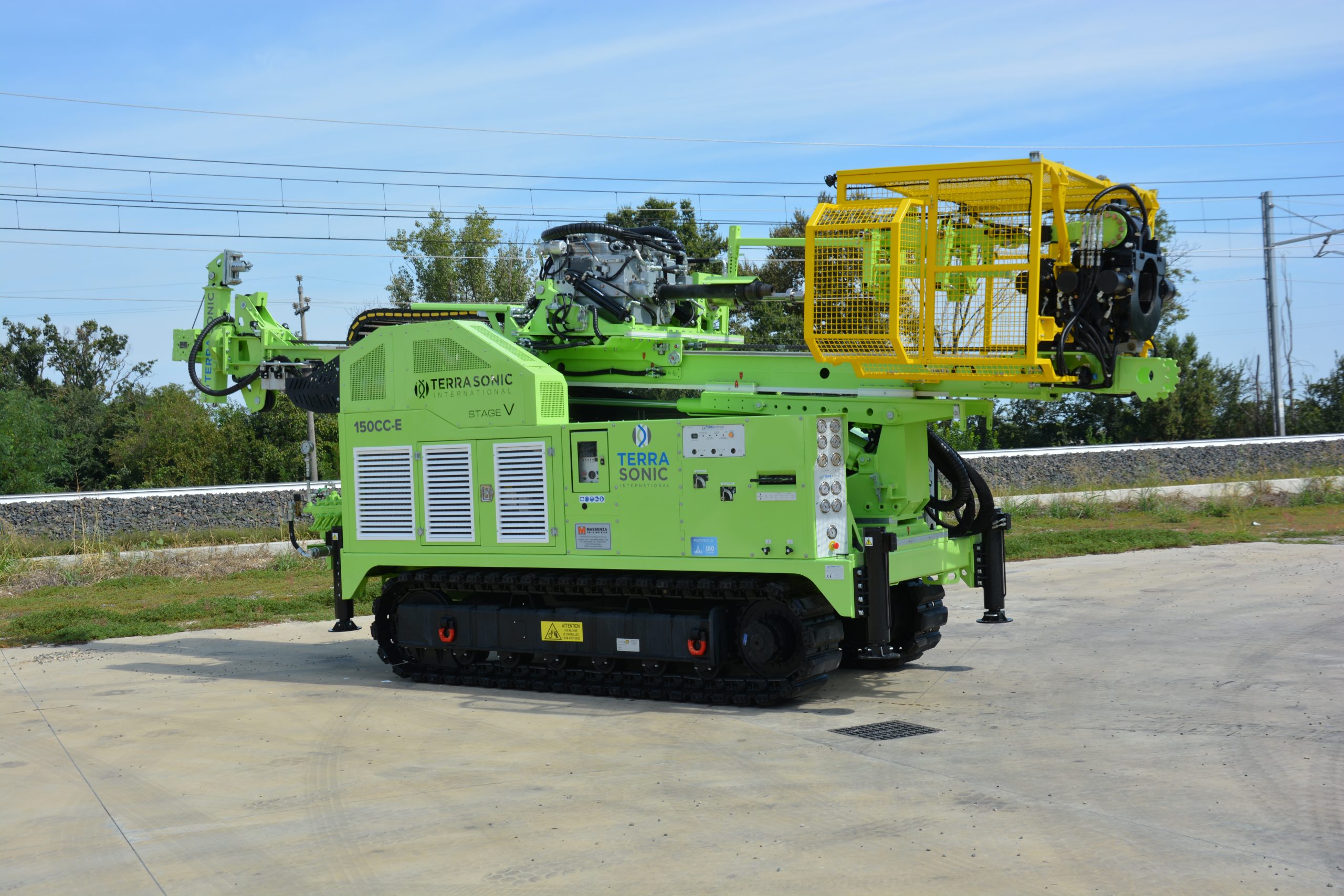

Photo Gallery
